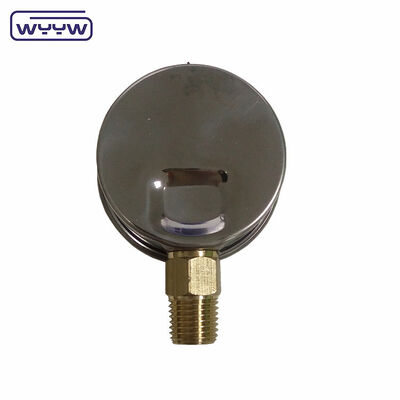

Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi

200 قطعة
MOQ
Depends on total quantity
السعر
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
ضمان: 1 سنة
دعم مخصص: تصنيع المعدات الأصلية، أوديإم
مقاس: 2" ((50ملم)
مادة: الفولاذ المقاوم للصدأ
نطاق الضغط: 0 ~ 100Mpa، بار، ملي بار، الخ
زيت: الجلسرين أو السيليكون
المزايا: مقاوم للرطوبة، ومقاوم للتآكل، وصديق للبيئة، ومتين للغاية
إبراز:

50mm Liquid Filled Pressure Gauge,Stainless Steel Pressure Gauge,Glycerine Filled Manometer

,

Stainless Steel Pressure Gauge

,

Glycerine Filled Manometer

معلومات اساسية
مكان المنشأ: تشينغداو، الصين
اسم العلامة التجارية: WYYW
إصدار الشهادات: CE & ISO9001
رقم الموديل: واي تي إن-50
شروط الدفع والشحن
تفاصيل التغليف: كيس من البلاستيك الداخلي، تصدير الكرتون خارج الجانب. البليت اختياري.
وقت التسليم: 30 يوما
شروط الدفع: ترينيداد وتوباغو، LC.Alipay.ويسترن يونيون
القدرة على العرض: 30-50 ألف في الشهر
منتوج وصف
Glyceine Pressure Gauge 50mm Bottom 0-14Bar/0-200Psi
Liquid Filled Pressure Gauge 50mm Bottom 1/4" NPT OEM Pressure Meter
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 0
Product Specifications
Specification Details
Name Glycerine pressure gauge
Dial Size 50mm (custom sizes available)
Case Stainless steel
Pressure Units Mpa, bar, psi, kg/cm² (optional)
Ring Gasket under the window
Movement brass
Socket brass
Bourdon Tube Phosphor Bronze
Dial Plate and Pointer Aluminum
Window Plastic
Connection Sizes 1/8" for 1.5"; 1/4" for 2", 2.5" case; 1/2" for 4", 6"
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom
Accuracy 1.5"(40mm), 2"(50mm), 2.5"(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure Limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 1Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 2 Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 3
Product Applications
  • Exposure to harsh outdoor environments and extreme operational conditions
  • Applications involving significant vibrations and pressure fluctuations
  • Equipment used in hydraulics, pressure washing, oil extraction, pumps, compressors, and various process systems
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 4
Company Information
Qingdao DaZeFengYang is a professional manufacturer of pressure gauges and hardware tools, and a proud member of the China National Hardware Association. With the support of our highly skilled technical team, we strive to ensure that our pressure gauges meet both GB/T (Chinese Standards) and international quality standards. We are certified with ISO9001 and CE for all our products, which include pressure gauges, gas regulators, cutting torches, welding torches, and more. Over the years, we have developed an impressive range of both specialized and standard products, all offered at competitive prices and with prompt delivery. Our efficient sales and after-sales service make us an attractive option for customers worldwide, particularly distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia. We warmly invite friends and partners to reach out to us via phone or email, or to visit our company. We look forward to building a successful future together!
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 5 Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 6 Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi 7
Advantages
  • Advanced Equipment and Professional Technology: We are committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Our company provides excellent after-sale service with the goal of establishing long-term trade cooperation.
  • Serious Inspection Procedure with Excellent Quality: All our pressure gauges undergo 100% inspection and we have passed ISO9001 and UL certification.
  • Quick Delivery: We provide timely delivery to always satisfy customer needs.
  • Convenient Purchase and Cost Savings: As a skilled manufacturer, we offer convenient purchasing with high-quality products at reasonable prices.
  • OEM Orders: We have extensive experience with OEM orders from renowned companies in USA and European markets.
