Our 2.5-inch (63mm) Vertical Stainless Steel Pressure Gauge combines professional-grade accuracy with convenient panel-mount design. Featuring a 0-1.6MPa / 0-16kgf/cm² dual scale and integrated bayonet ring, this vertical manometer delivers surge-dampened readings for reliable performance in industrial applications.
Vertical Panel Mount: The vertical manometer design allows for flush installation on control panels with bottom connection—perfect for space-constrained instrument layouts.
Bayonet Locking Ring: The secure bezel ring pressure gauge features a quarter-turn bayonet mechanism that prevents loosening from vibration, ensuring long-term reliability.
Surge Dampened: Internal design smooths pressure spikes and pulsation for accurate, stable readings.
All Stainless Steel: Corrosion-resistant construction for demanding industrial environments.

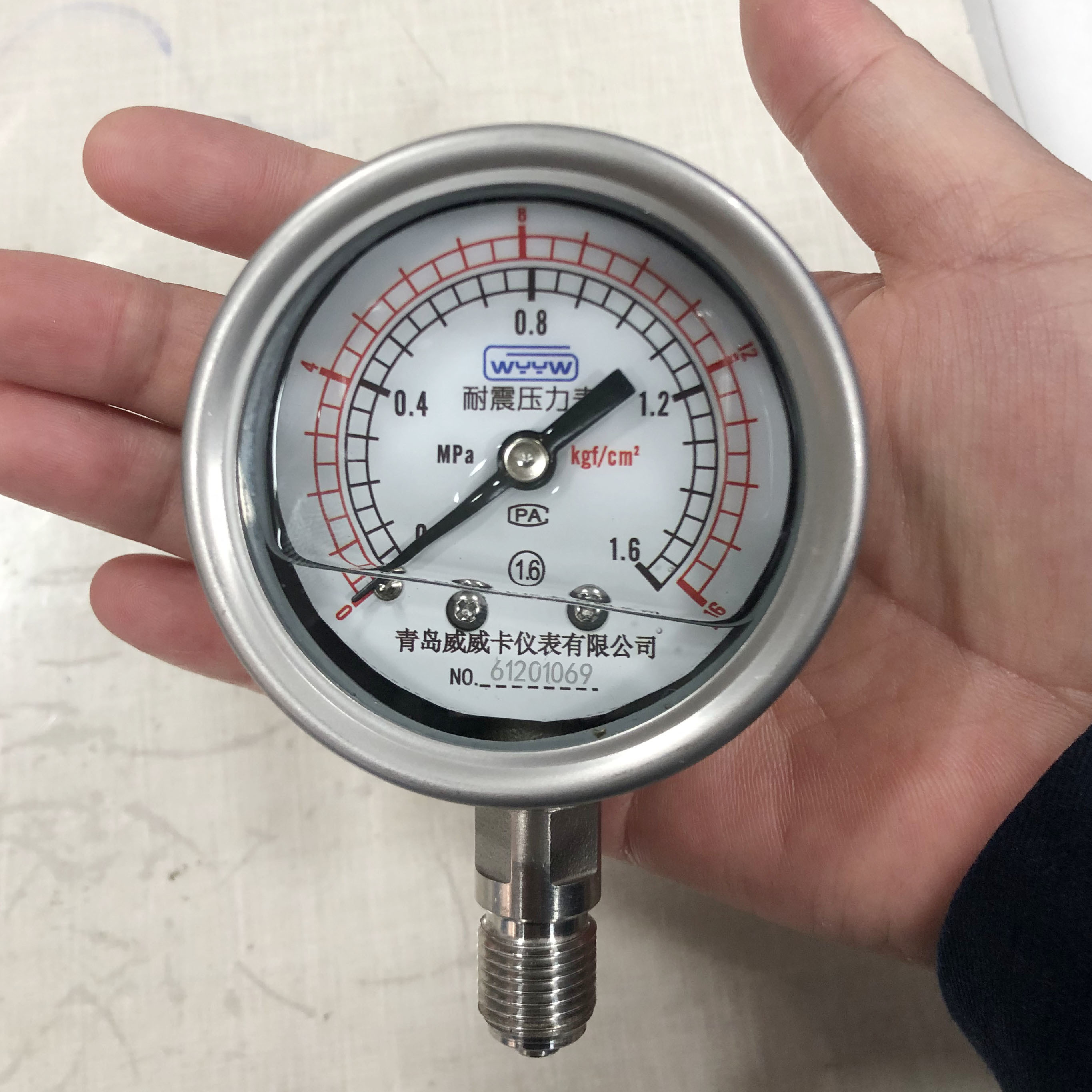

Dual Scale Display: Read pressure in both MPa and kgf/cm² on one clear dial.
| Specification | Detail |
| Dial Size | 2.5 inches / 63mm |
| Pressure Range | 0-1.6MPa / 0-16kgf/cm² |
| Mounting | Vertical (Bottom/Axial) |
| Bezel | Bayonet Ring |
| Case Material | All Stainless Steel |
| Feature | Surge Dampened |
Industrial control panels and consoles
Hydraulic and pneumatic systems
Pump and compressor monitoring
Process control panels
OEM machinery
