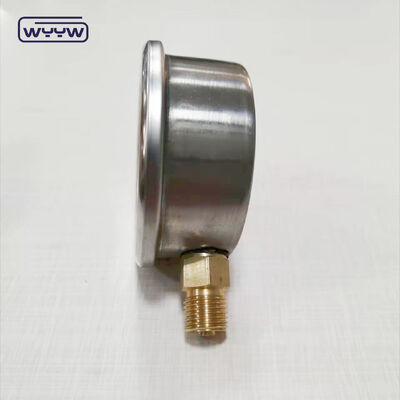

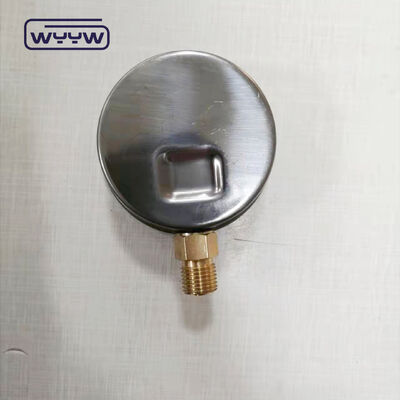

63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range

200 قطعة
MOQ
Depends on total quantity
السعر
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
دعم مخصص: تصنيع المعدات الأصلية، أوديإم، OBM
مادة: حالة الفولاذ المقاوم للصدأ
المكان الأصلي: صنع في الصين
حجم الطلب: 63mm
نطاق الضغط: مصنوعة حسب المتطلبات، ميجاباسكال، بار، رطل لكل بوصة مربعة، كجم إلخ.
جبل: قاع
دقة: 2.5 ٪
ضمان: 1 سنة
ميناء: تشينغداو وشانغهاي وتيانجين ونينغبو
المزايا: مقاوم للرطوبة، ومقاوم للتآكل، وصديق للبيئة، ومتين للغاية
معلومات اساسية
مكان المنشأ: تشينغداو، الصين
اسم العلامة التجارية: WYYW
إصدار الشهادات: CE & ISO9001
رقم الموديل: واي تي إن-63
شروط الدفع والشحن
تفاصيل التغليف: كيس من البلاستيك الداخلي، تصدير الكرتون خارج الجانب. البليت اختياري.
وقت التسليم: 5-30 يوم
شروط الدفع: ترينيداد وتوباغو، LC.Alipay.ويسترن يونيون
القدرة على العرض: 30-50 ألف في الشهر
منتوج وصف
Chinse Factory 63mm Oil Filled Mud Pump Pressure Gauge
mud pump pressure gauge
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 0
Product Description
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 1
Name Oil filled pressure gauge
Dials Size 40/50/63/100/150mm (or custom size available)
Case Stainless steel case
Pressure Mpa, other scale units bar, psi, kg/cm2 etc. optional
Ring None
Movement Brass
Socket Brass
Bourdon tube Bronze
Dial plate and pointer Aluminum
Window Acrylic / Plastic
Connection sizes 1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom/Back and panel
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 2 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 3 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 4
Product Application
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 5
Company Information
Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.
Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including: pressure gauge, gas regulator, cutting torch and welding torch etc.
Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.
Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 6 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 7 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 8
Packaging & Shipping
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 9
Advantages
  • Advance Equipment and Professional Technology: We are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
  • Best After-sales Service: Our company provide best after-sale service all the time, for our goal is a long trade cooperation term.
  • Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection, we also have passed ISO9001 and UL certificated.
  • Quickly Delivery: Our company provides in-time delivery, always satisfy customers needs.
  • Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase. We can provide our high quality products with reasonable price.
  • OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market.
